FM226T is a small-capacity face recognition module of FuGe, mainly used in smart door locks and other fields.

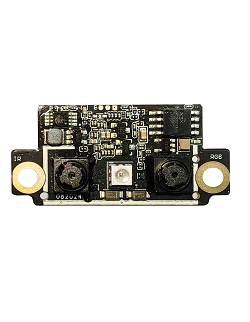

FM226T consists of face algorithm motherboard + binocular camera + infrared LED light.
The FM225 module is based on infrared + visible light camera, and completes functions such as face liveness detection, face capture, feature extraction/comparison and user information storage. It communicates with third parties and transmits video through UART/USB to realize the face recognition function of smart door locks. The visible light camera outputs video images at the same time to realize the face recognition + cat's eye visual function of smart locks.
|
Function |
Specifications |
|
Product model |
FM226T |
|
Face algorithm |
Support deep learning infrared face |
|
Number of users (face) |
100 people |
|
Pass (recognition) rate (face) |
98.85% |
|
False recognition rate (face) |
0.001% |
|
Recognition angle (face) |
About 20 degrees left and right (support multi-angle face entry at the same time, expand the recognition range) |
|
Recognition distance (face) |
30~110CM |
|
Liveness detection function |
支持Support |
|
Liveness detection false acceptance rate (LDAFAR) |
≤1% |
|
Liveness detection false rejection rate (LPFRR) |
≤1% |
|
Video function |
Support USB output color video |
|
Communication interface |
UART & USB |
|
Communication baud rate (UART) |
115200 (default) |
|
Power Supply |
Input：4.5V～12V Ripple Level：≦100 mV Current：≧1A
|
|
Shutdown current |
0uA |
|
Operating temperature |
-20°C ~ 60°C |
|
Storage temperature |
-30°C ~ 70°C |
|
Relative humidity |
10% ~ 93% (non-condensing) |
